mVIS

Modular intercom system designed for armored and command vehicles
Unified communication control
Internal crew intercom active
MODULAR INTERCOM

Seamless crew comms and radio control in any platform

mVIS is a digital, modular intercom that distributes clear voice to every crew station and bridges the vehicle to multiple external radios over RoIP. It’s battle proven, ready in ~3 seconds, supports up to 16 users / 8 radios (or a compact 2 port variant), and runs on a dual ring redundant network with built in module so crews keep talking and commanders stay in control under fire.
Key Points:
  • Instant readiness
  • Noise Isolation
  • Scalable architecture
  • Ruggedized
KEY BENEFITS

Mission-Critical Communications

Communicate through chaos
Adaptive noise reduction and crew centric HMI keep voice intelligible in high noise, high shock environments.
One network, total control
Unifies intercom and multiple radios under one IP fabric so operators can select, monitor and transmit per role.
Faster C2 cycles
Immediate boot, role interchange and radio priority control shorten the loop from call to command.
Mission proven reliability
Redundant audio/power dual ring and MIL profiles ensure continuity under battle damage and harsh conditions.
Fits any fleet
Scales from light tactical to MBT/C2 vehicles; supports slip rings, central feed power and platform variants.

Significant Operational Advanced Features

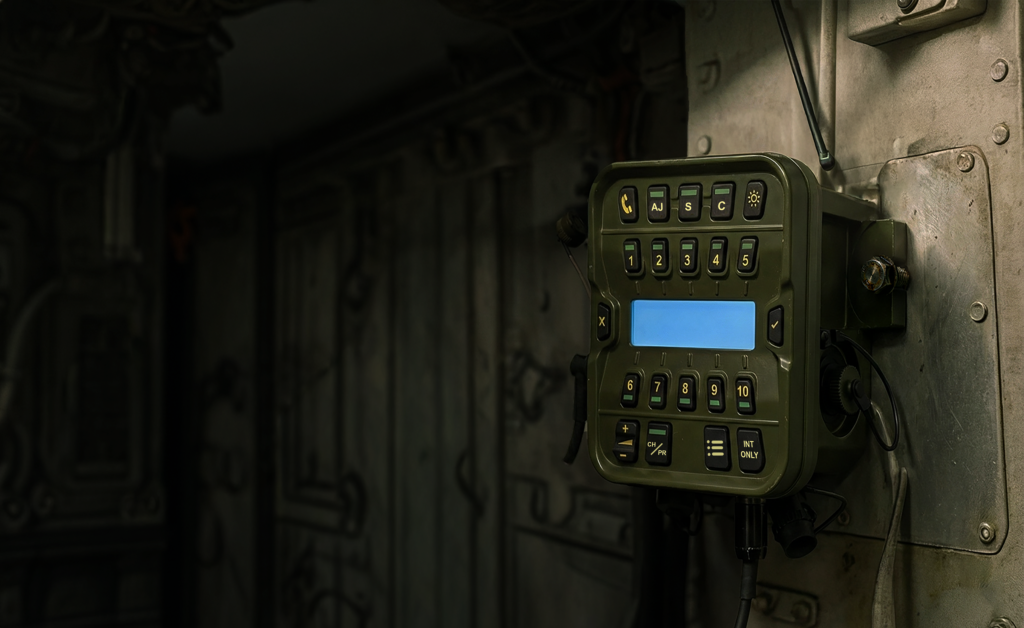

Modular crew consoles

Multi functional, dual role operator units with audio feedback for blind operation and per radio selection/control.

RoIP radio bridging

IP based distribution that integrates existing radios into one network for selective/combined comms across nets.

Dual ring architecture

Highly redundant audio/power rings with cybersecurity aware development and independent switching fabric.

Instant boot

System comes online in ~3 seconds to restore crew voice and radio access after power events.

Scalability options

Full configuration: up to 16 users, 8/4/2 radios; compact 2 port central switch for up to 9 users / 2 radios.

MIL grade design

Qualified to MIL STD 1275D/461F/810F; central protected power, slip ring support, and harsh environment operation.

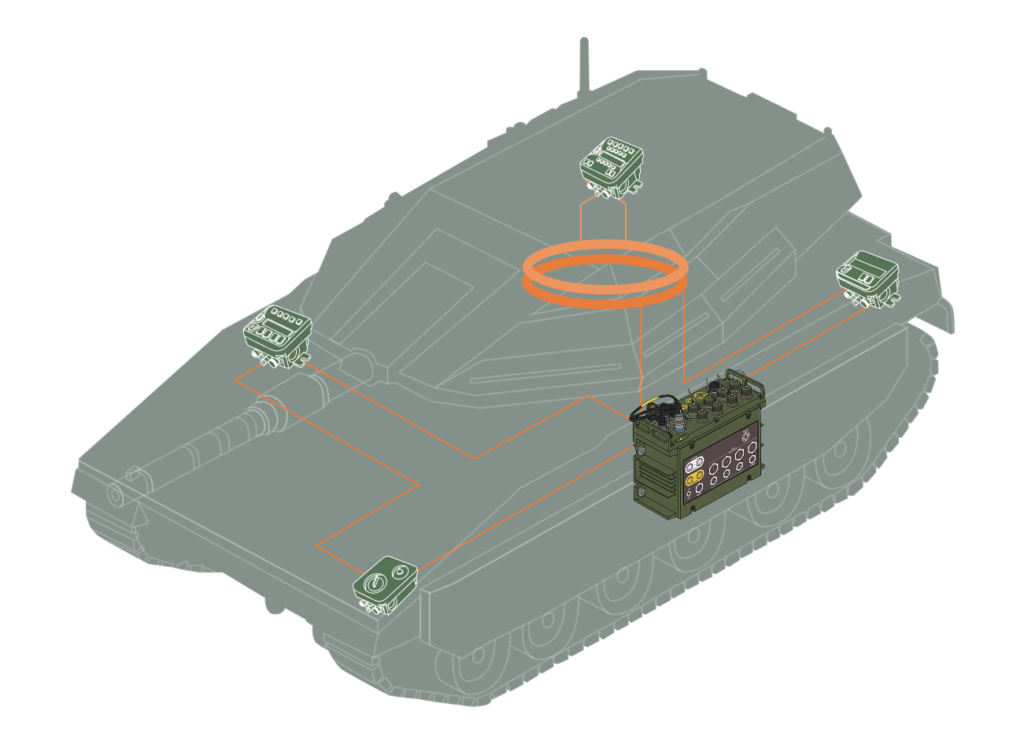

Connectivity Diagram Proposal

Specifications & Components

Technical Specifications

  • System Type
    Digital RoIP Intercom
  • Boot Time
    ≈ 3 seconds
  • Users
    Up to 16
  • Radios
    Up to 8
  • Users (2 port)
    Up to 10
  • Radios (2 port)
    Up to 2
  • Network Topology
    Dual ring redundant
  • Noise Handling
    Adaptive cancellation
  • Recording
    Built in module
  • Slip Ring Support
    Yes (collector)
  • Power Input
    Central protected feed
  • Independence
    No external switches
  • Standards
    MIL STD 1275D/461F/810F
  • UI Aids
    Audio feedback (blind)
  • Roles & Priority
    Operator interchange
  • Integration
    Existing radios (RoIP)

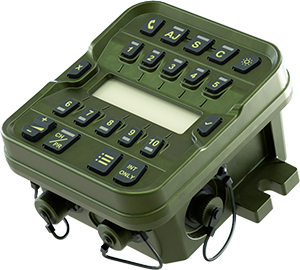

  • Commander Control Unit
    Role based console

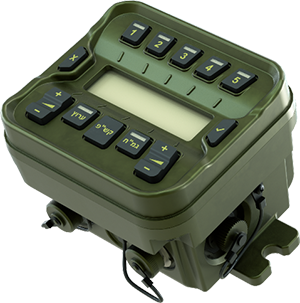

  • Crew Control Units
    Multi function stations

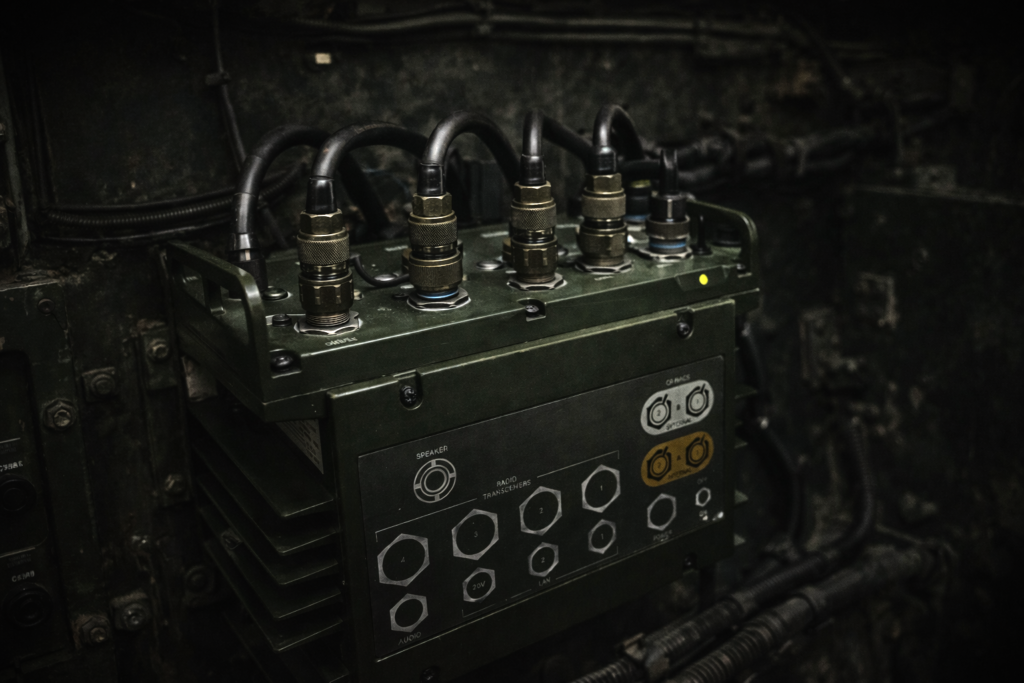

  • Central Switch
    2 port / 8 port variants

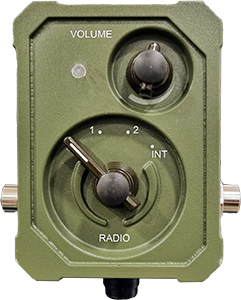

  • Rotary Switch Boxes
    Simple terminal

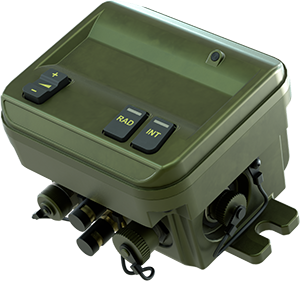

  • Rear Control Box
