mSphere

AI-powered 360° situational awareness system for armored vehicles
Complete surround coverage
No blind spot
360° SITUATIONAL AWARENESS

The Ultimate Situational Awareness Solution in Modern Combat

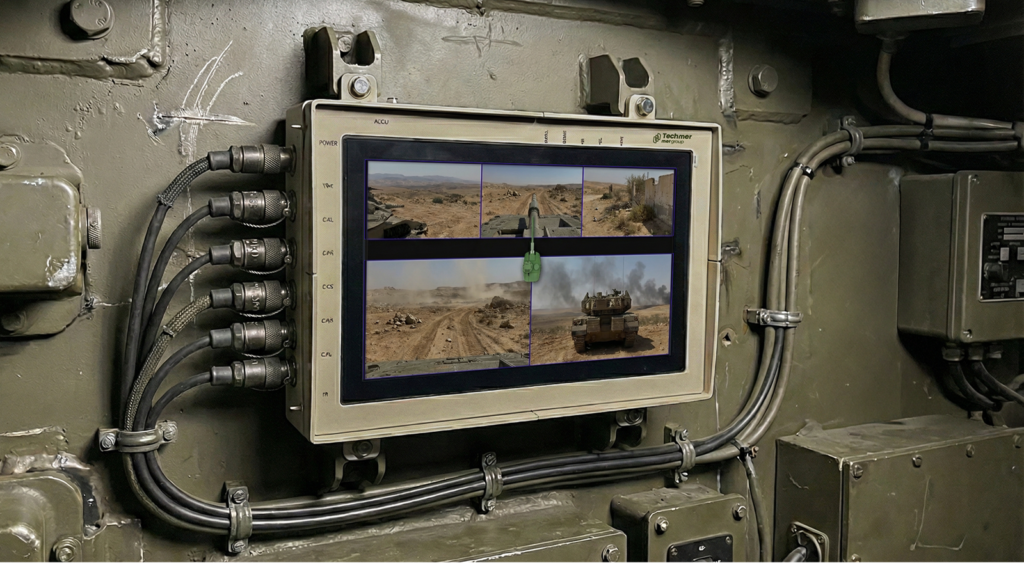

mSphere provides seamless 360° coverage via multiple rugged IP cameras, a 13.3″ touch display for intuitive control, and AI driven detection that reduces cognitive load. It operates day/night with IR, withstands harsh environments, and streams visual/audio alerts to the vehicle intercom (mVIS) to keep the whole crew synchronized.
Key Points:
  • Eliminate blind spots
  • Detect & classify
  • Operate 24/7
  • Retrofit-ready
KEY BENEFITS

Mission-Critical Operational Benefits

Full hemispheric awareness
Five IP cameras stitch a 360° × 120° view, removing blind zones and enabling earlier warning in urban and open terrain.
Faster, smarter reaction
Embedded AI detects, classifies and localizes threats in real time, reducing operator load and accelerating response.
24/7 mission readiness
IR enabled day/night operation with ultra low latency keeps awareness continuous in degraded visibility.
Rugged, combat proven design
Built for extreme temperatures, shock and vibration; developed from battlefield experience and user feedback.

Features: The 6th Sense in the Battle Field

Multi IP camera array

5 × IP cameras, 4 MP CMOS each, 2560×1440 (2K), 110°×60° FoV; eliminates blind spots around the hull.

Embedded AI engines

Dual AI engines onboard execute recognition and tracking locally for rapid, reliable identification.

Touch mission display

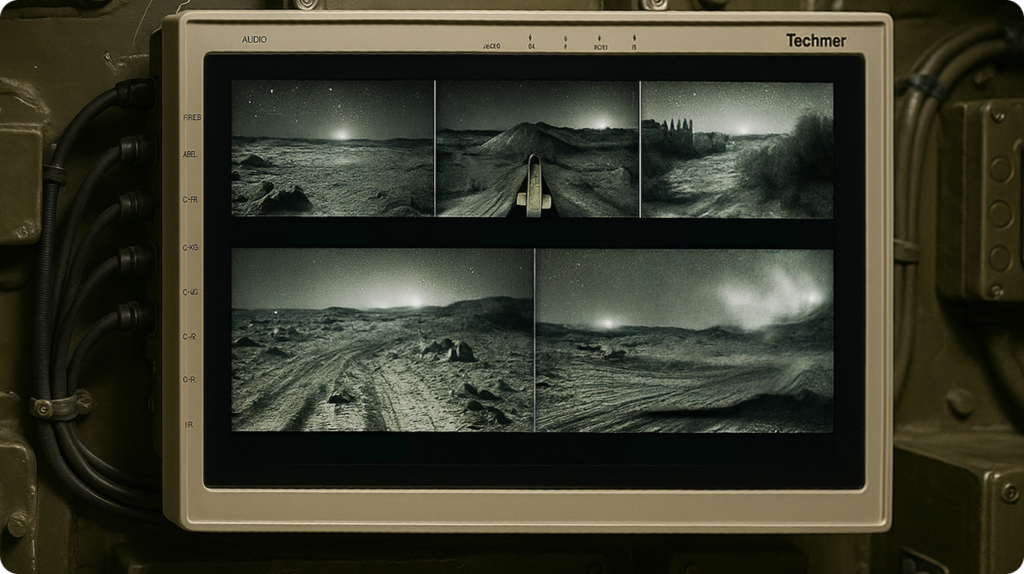

13.3″ capacitive touch with intuitive UI to swap between multiview and single view modes.

IR night vision

Infrared capabilities ensure detection day/night and in degraded visual environments.

Ruggedized enclosure

Designed for harsh environments—dust, sand, humidity—resistant to shock and vibration; meets MIL standards.

Crew alerts & intercom streaming

Integrated speaker plus alert streaming to mVIS for synchronized crew decision making.

EMC & power compliance

MIL STD 461 EMC, MIL STD 1275 vehicle power; engineered for armored platforms.

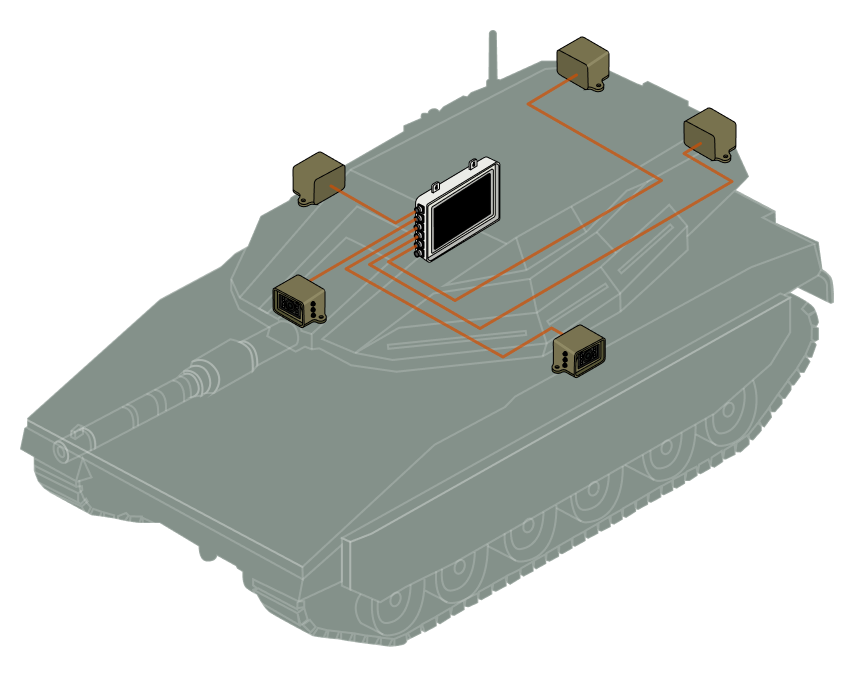

Connectivity Diagram Proposal

Specifications & Components

Technical Specifications

  • Camera Count
    5 × IP cameras
  • Sensor / Resolution
    4 MP CMOS / 2560×1440
  • Field of View
    110° × 60°
  • AI Engine
    Dual embedded AI
  • Display
    13.3″ capacitive touch
  • Night Vision
    IR day/night
  • Latency
    Ultra low
  • Audio Alerts
    Speaker + intercom stream
  • Environment
    Shock / vibration / dust / humidity
  • EMC
    MIL STD 461
  • Power
    MIL STD 1275 compliant
  • Ruggedization
    Meets MIL STD 810
  • Display
    13.3-inch ruggedized touchscreen with MIL-STD compliance, featuring integrated speakers
  • Single camera

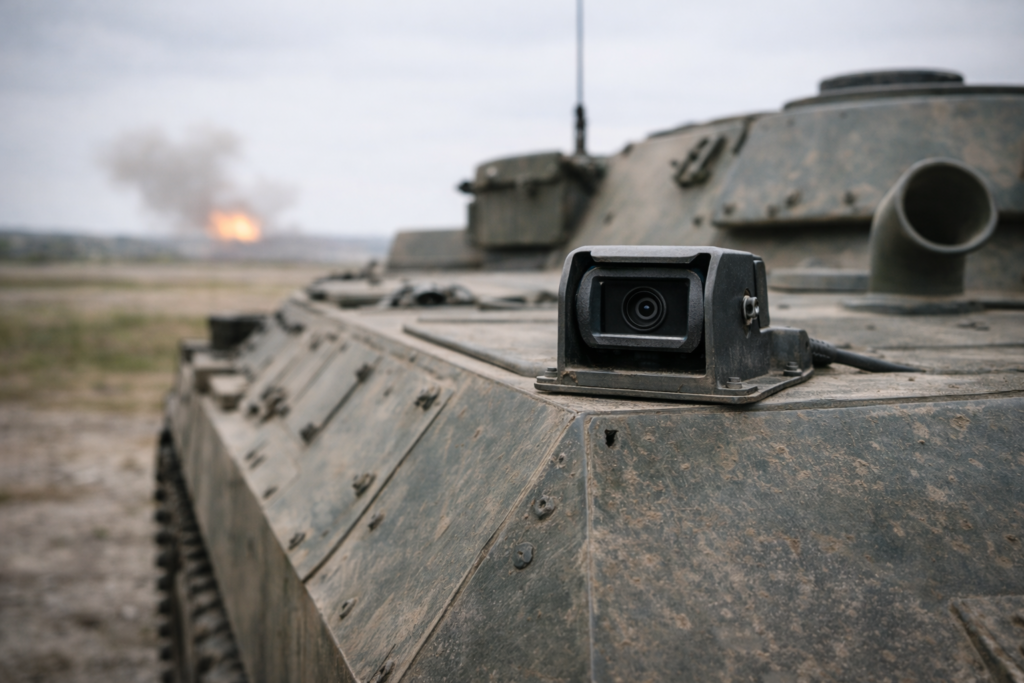

    Ruggedized all-weather IP camera with 1920×1080 resolution
