mOnyx

Driving Vision System for Armored Vehicles, Through Complete Darkness, Dust, Haze, and Fog
Night Vision
TOTAL AWARENESS

Advanced Driver’s Vision System for Armored Vehicles

The mOnyx is a Driving Vision solution for armored Vehicles for clear vision through night, dust, haze, and Fog. This solution is specifically designed for covert manoeuvring, enabling operations without being detected while avoiding obstacles in the most challenging environments and conditions, day or night.
Key Points:
  • SWIR Night Vision
  • Optical Zoom
  • Ultra-Wide Field of View
  • Adaptable to Multiple Platforms
KEY BENEFITS

Mission-Critical Operational Benefits

Enhanced Safety
Reduces collision risk and improves driver awareness in low-visibility conditions.
Covert Maneuvering
Allows undetected navigation in hostile environments, day or night.
All-Weather Reliability
Operates effectively through dust, haze, fog, and glass for uninterrupted vision.
Mission Success
Improves route planning and reduces friendly-fire incidents in complex scenarios.
Automatic Activation
Integrated foldable display activates instantly when flipped down by the driver

Features: Clarity for Every Mission

360° High-Resolution Coverage

Multiple IP cameras deliver complete situational awareness by eliminating blind spots

Intuitive Touch Interface

A 13.3” touchscreen ensures effortless operation, enabling crews to access critical information quickly and efficiently

AI-Powered Threat Detection

Embedded AI engines identify, classify, and prioritize threats in real time, reducing cognitive load and improving reaction speed

Specifications & Components

Technical Specifications

  • Horizontal Field of View (HFOV)
    55° ± 0,5
  • Vertical Field of View (VFOV)
    30° ± 0,5
  • Focal Length
    6.9m / F1.0
  • Depth of Field (DOF)
    2m to infinity
  • Detector Size
    1920 × 1080 (IR 640 × 512 px), pixel pitch 4 × 4 µm (12 × 12 µm)
  • Display Size
    8” / 10”
  • Display Resolution
    1280 × 720 (SDI)
  • Latency
    Real-time
  • Power Consumption
    24 VDC / 40 W
  • Operating Temperature
    –20 °C to +60 °C
  • Total Weight
    16 kg
  • Environmental Standard
    MIL-STD-810F
  • Electromagnetic Compatibility (EMC)
    MIL-STD-461E
  • Ingress Protection Rating
    IP65
  • mOnyx Camera

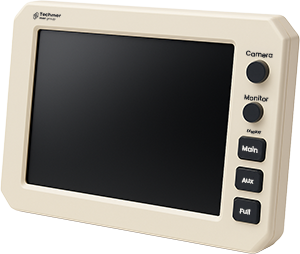

  • mOnyx Display
