mDiamond

AI-Powered 360° Anti Drone Detection
Easy integration
Full coverage of the sky
AI powered
SECURING THE SKIES

360° × 120° Thermal Detection with Onboard AI

mDiamond combines a triple thermal camera array with advanced LWIR sensing and a trained AI engine to deliver persistent 360° × 120° coverage, even through haze, light fog and smoke. It is vehicle ready, rapidly deployable, ruggedized to military standards, and designed to feed C4I and countermeasure systems with precise, low latency threat coordinates.
Key Points:
  • All weather optical detection
  • AI threat intelligence
  • Rapid deployment & vehicle install
  • Countermeasure ready
KEY BENEFITS

The Ultimate 360° AI‑Powered Threat Detection

Hemispheric coverage
360° × 120° field of view delivers complete airspace awareness for early warning and decisive response.
All weather, 24/7 vigilance
LWIR optical sensing pierces haze, light fog and smoke to maintain detection when visibility degrades.
Faster, smarter decisions
Onboard AI rapidly detects, classifies and localizes drones, reducing false alarms and accelerating targeting.
From detection to action
Native integration to C4I and countermeasure systems turns instant detection into immediate neutralization.
Actionable evidence
Automatic recording of video, images and telemetry supports debrief, intel and continuous AI learning.

Drone Detection Features

Triple Thermal Camera Array

Three LWIR thermal imagers provide a stitched 360° × 120° hemispheric view with high resolution imaging for precise identification.

Passive LWIR detection

Long wave infrared (as applicable) enable day/night operation and performance through haze, light fog and smoke.

AI powered threat management

Embedded AI with a drone signature database performs detection, classification and tracking of 10+ targets with sub second latency.

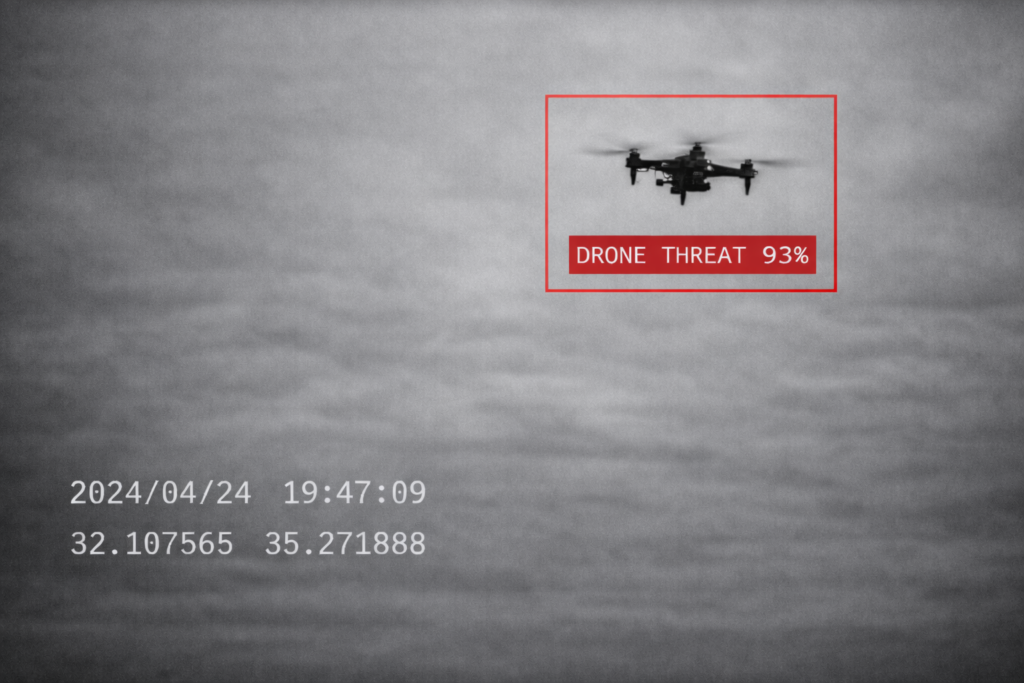

Precision geolocation & recording

Automatic video/image/telemetry capture and exact coordinate output for C4I, effectors and after action review.

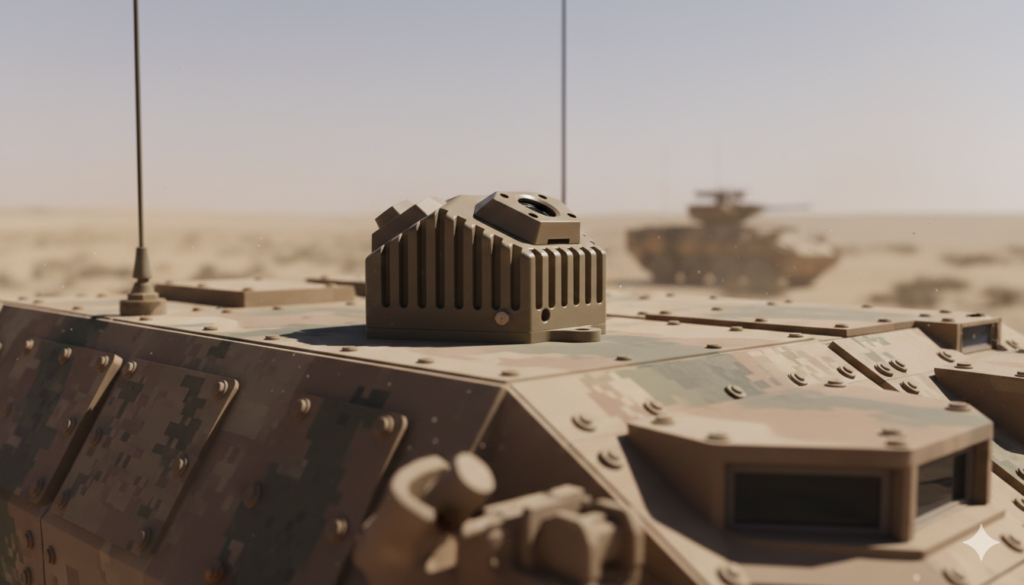

Vehicle ready & quick setup

Mountable on armored platforms; rapid operational readiness with an intuitive operator flow.

Rugged MIL grade design

Built for harsh environments with EMI/EMC and environmental performance aligned to MIL STD profiles.

Secure, open integration

Encrypted links, local/offline modes, HDMI and GigE (H.265) outputs, open API and touchscreen interface options.

Connectivity Diagram Proposal

Specifications & Components

Technical Specifications

  • Video engine
    VOx microbolometer
  • Imaging system
    Uncooled LWIR thermal imager
  • Resolution
    640 × 480
  • Image sensitivity
    NETD < 35 mK (no noise reduction)
  • Frame rate
    High, adjustable
  • Field of view
    Wide HFOV & VFOV
  • Multi-target tracking
    Latest AI-based tracking (10+ targets)
  • Threat detection latency
    < 500 ms
  • CPU
    8-core 64-bit ARM-based
  • Memory
    16 GB LDDR5
  • NPU
    Embedded 30 TOPS
  • Local video output
    HDMI
  • Network video interface
    10/100/1000 Base-T Ethernet (H.265 compressed)
  • Debug/system integration
    10/100/1000 Base-T Ethernet
  • Touch-screen interface
    USB 2.0
  • Open API
    For C4I and countermeasure applications
  • Cyclical video recording
    Built-in
  • Threat coordinate pinpointing
    Exact coordinates
  • Dimensions (W × D × H)
    17.5 × 17.5 × 12 cm
  • Weight
    3 kg
  • Power consumption
    Low
  • Cooling
    Effective passive design
  • Sunlight exposure
    Built to withstand direct sunlight
  • Power supply
    18–36 VDC, central feed and protected
  • Power standard
    MIL-STD-1275
  • Operating temperature
    -25ºC to +65ºC
  • EMI/EMC
    MIL-STD-461F
  • Environmental
    MIL-STD-810F
  • Humidity
    0–95%
  • The mDiamond device
